PRODUCT LINE 01

Hydraulic Servo Energy-saving System

Saves 50%~80% energy. The whole series pairs permanent magnet synchronous servo motors with vector-controlled servo drives.

Why do traditional hydraulic systems consume energy?

The hydraulic energy-saving system integrates servo technology and hydraulic technology, and adopts the combination of oil pump and permanent magnet synchronous servo motor.

Standby power
30-40% of rated powerKeeps burning power even at standby
Near zeroNear-zero speed at standby
Overflow loss
Overflow to tankExcess oil returns via relief valves
No overflow lossSupplies only what is needed
Motor speed
Fixed speedInduction motor runs at full speed
Real-time controlSpeed follows pressure feedback
Oil temp & noise
Hot and loudConstant friction heat
Cool and quietFar less friction and heat
P/Q control
Valve throttlingLimited precision
Closed-loop P+QPressure and flow controlled together

Benefit results after using Hydraulic Servo Energy-saving System

2-3×

High dynamic response

The whole series adopts permanent magnet servo motor, the speed response is more than 2~3 times higher than that of the induction motor (the hydraulic response time is within 0.1 seconds), with full-speed high-torque and high-efficiency operation.

-30%

Save water and oil

The oil temperature of the system is greatly reduced, the components inside the sealed oil circuit are more durable in use, the required maintenance times and oil change intervals are reduced, and the cooling water consumption can be saved by more than 30%.

-15dB

Reduce ambient noise

Reduce equipment noise and reduce operator fatigue.

35-85%

Energy saving and environmental protection

Energy saving benefits reaches 35%~85%. 25%~55% of the processing cost of plastic injection products is electricity, by using energy-saving systems, the competitiveness of products can be immediately improved.

Two System Types

One energy-saving logic, two ways to deploy. Choose by power range, floor space and retrofit conditions.

01 / SPLIT TYPE

Split-type System

Motor, drive and pump are configured freely to suit the machine, the first choice for high power and retrofits of existing equipment.

Best for：High power, retrofit of existing equipment

View details
02 / INTEGRATEDNEW

BLACK BOX Integrated Unit

Servo drive and servo motor combined in one unit, with built-in braking unit and resistor. Four pre-made cables make it plug-and-play.

Best for：New machines, space-constrained sites

View details
01 / SPLIT TYPE

Split-type System

Motor, drive and pump are configured freely to suit the machine, the first choice for high power and retrofits of existing equipment.

0.75-375kW

Power range

5-345Bar

Pressure range

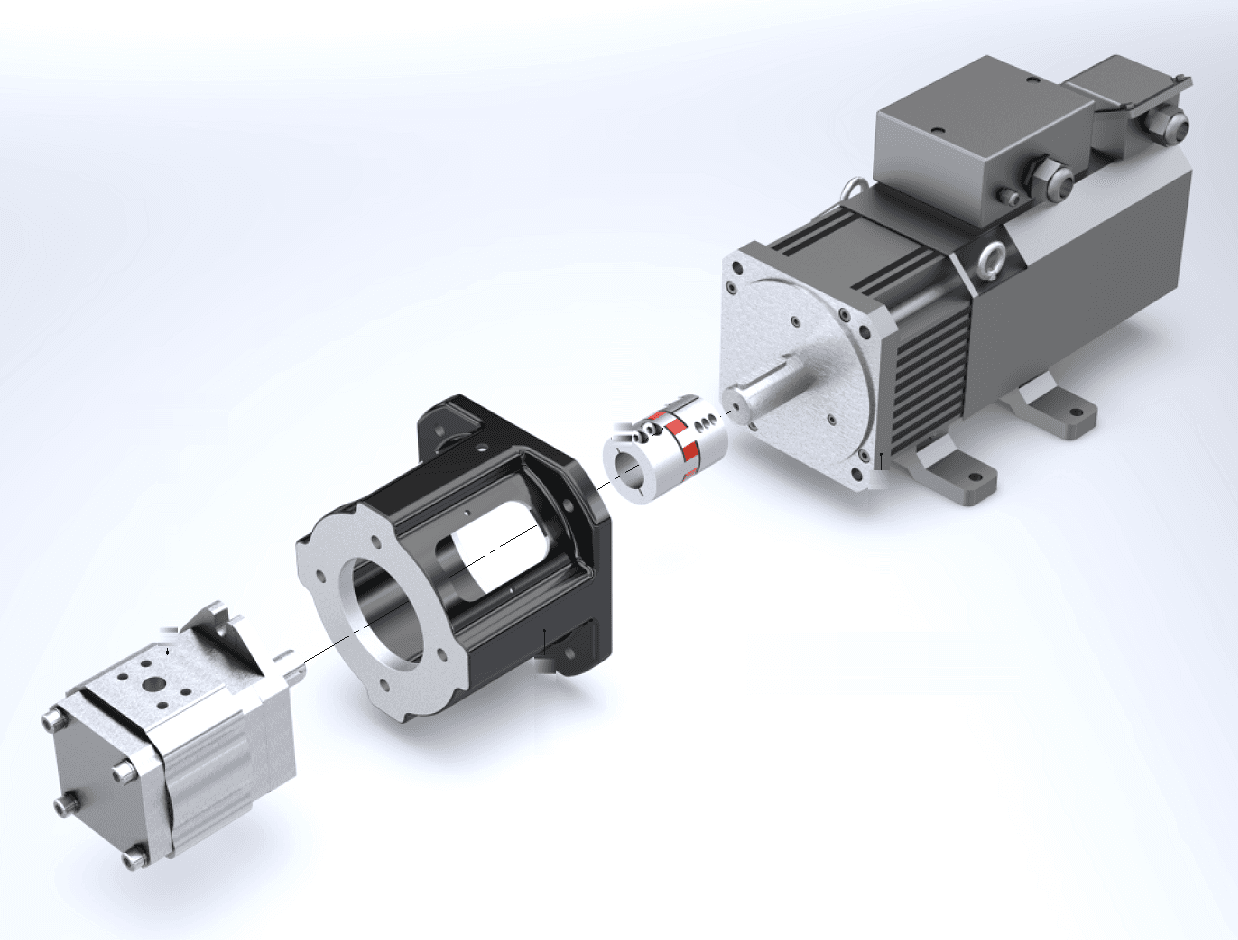

STRUCTURAL LAYOUTStructural layout
Structural layout

PQ specificationsPRESSURE / FLOW

Flow range
5LPM ~ unlimited

Multi-pump confluence

Pressure range
5-345Bar

Full closed-loop pressure control

Best for
High power, retrofit of existing equipment

Electrical & control componentsELECTRICAL / CONTROL

  • Hydraulic servo dedicated driver

    power range 1.5 kW~500 kW

  • Motor Feedback element

    RESOLVER

  • Sensing element

    Pressure Sensor

  • Anti-jamming components

    input reactor, zero phase filter, UL2464 double insulated cable

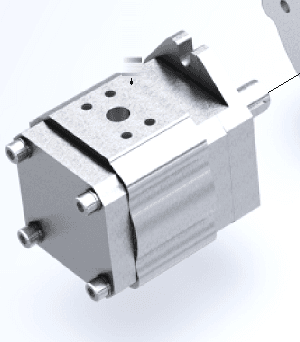

Oil pump01

Oil pump

gear pump, plunger pump, vane pump, screw pump

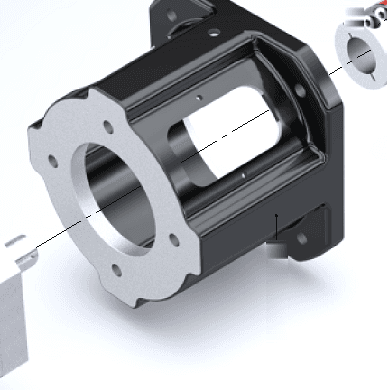

Mounting bracket02

Mounting bracket

one-piece cast aluminum center seat

Coupling03

Coupling

aluminum alloy backlash-free coupling

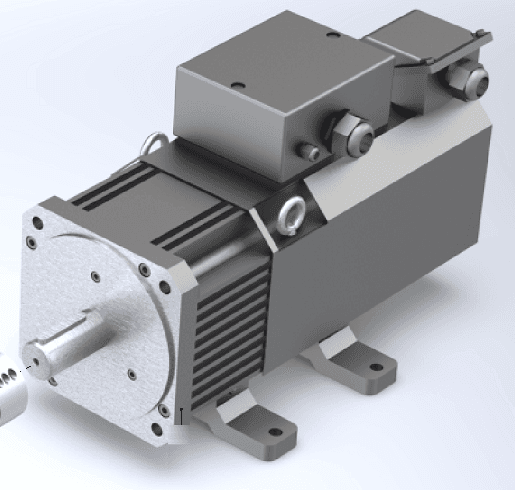

PM servo motor04

PM servo motor

power range 0.75 kW~375 kW

Technical characteristicsMEASURED CURVES

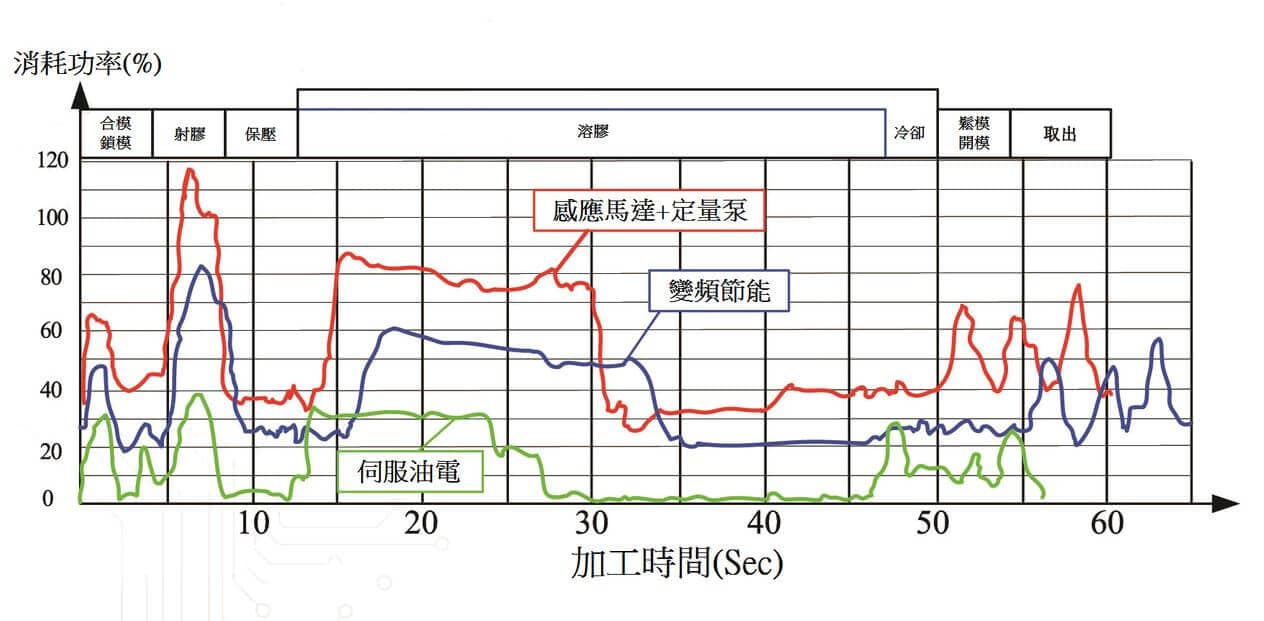

Comparison Curve of Energy Consumption of Hydraulic System of Injection Moulding Machine
Comparison Curve of Energy Consumption of Hydraulic System of Injection Moulding MachineThe electricity saving rate of hydraulic servo energy-saving system is 40%~85%

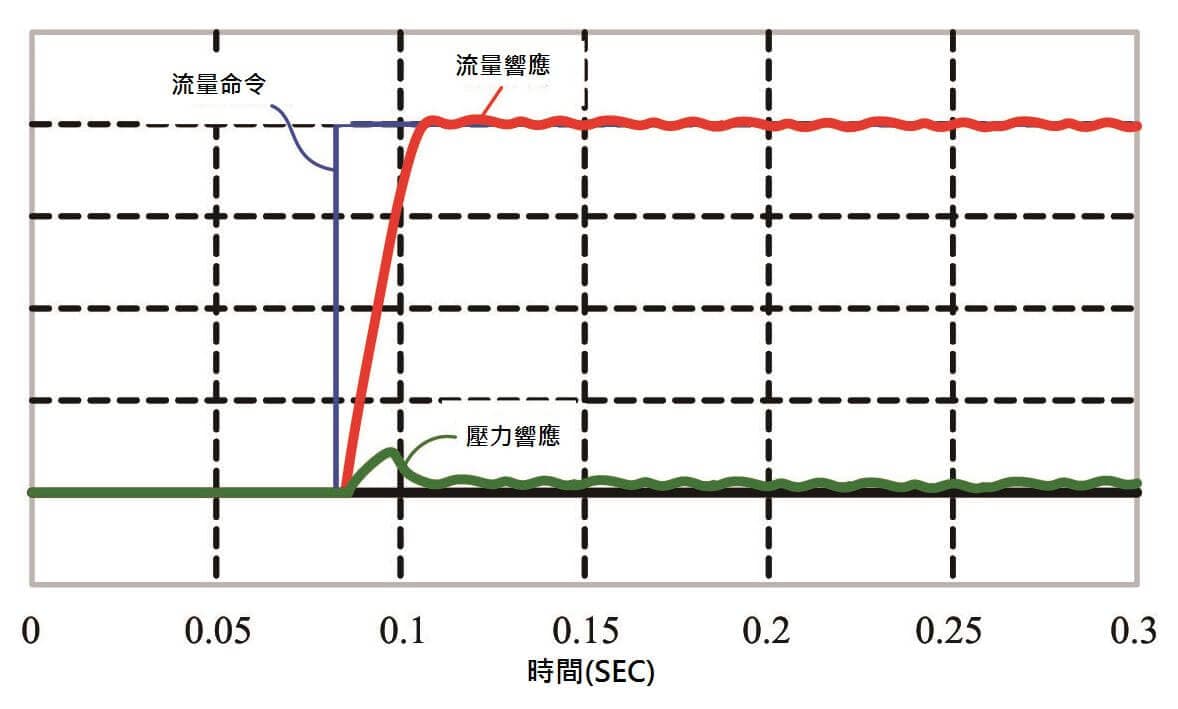

Flow Control Features
Flow Control FeaturesFlow response time within 100ms

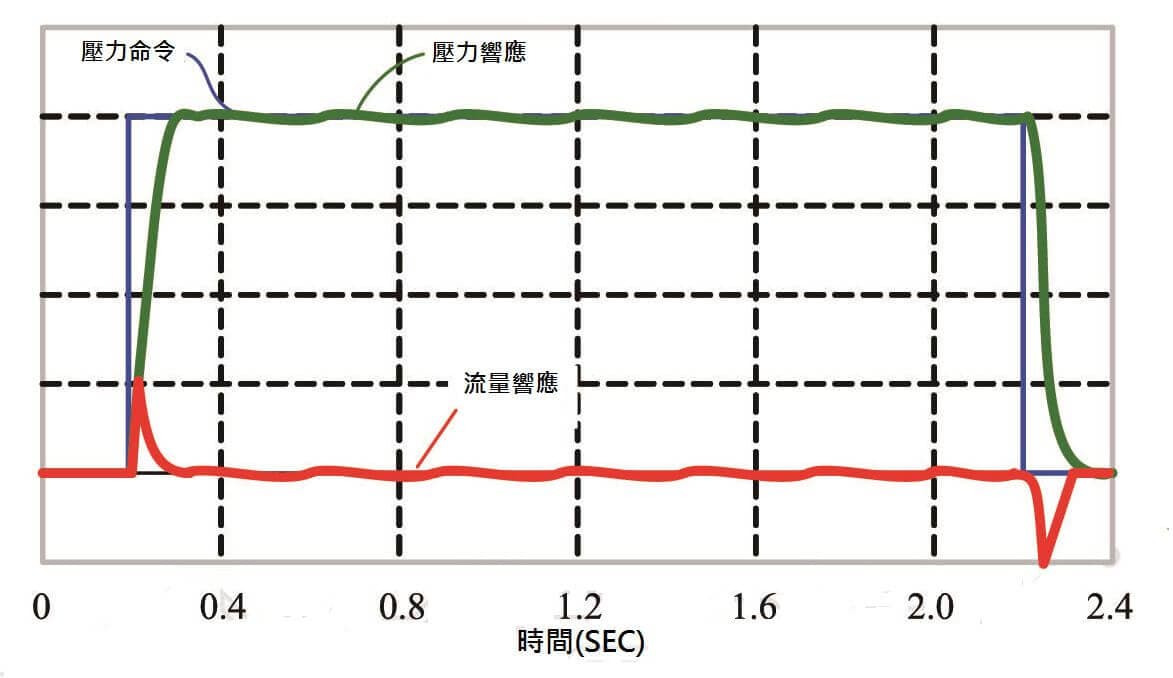

Pressure Control Features
Pressure Control FeaturesPressure response time within 100ms
02 / INTEGRATEDNEW

BLACK BOX Integrated Unit

Servo drive and servo motor combined in one unit, with built-in braking unit and resistor. Four pre-made cables make it plug-and-play.

All-in-oneStrong coolingHigh protectionNo tuningHigh performance

Power range

1.5-37kW

Full series, AC200V / 400V class

Flow response

<30ms

High-performance PQ control core

Pressure ripple

<0.05MPa

Full closed-loop pressure control

Protection

IP54

All connectors rated IP67 or above

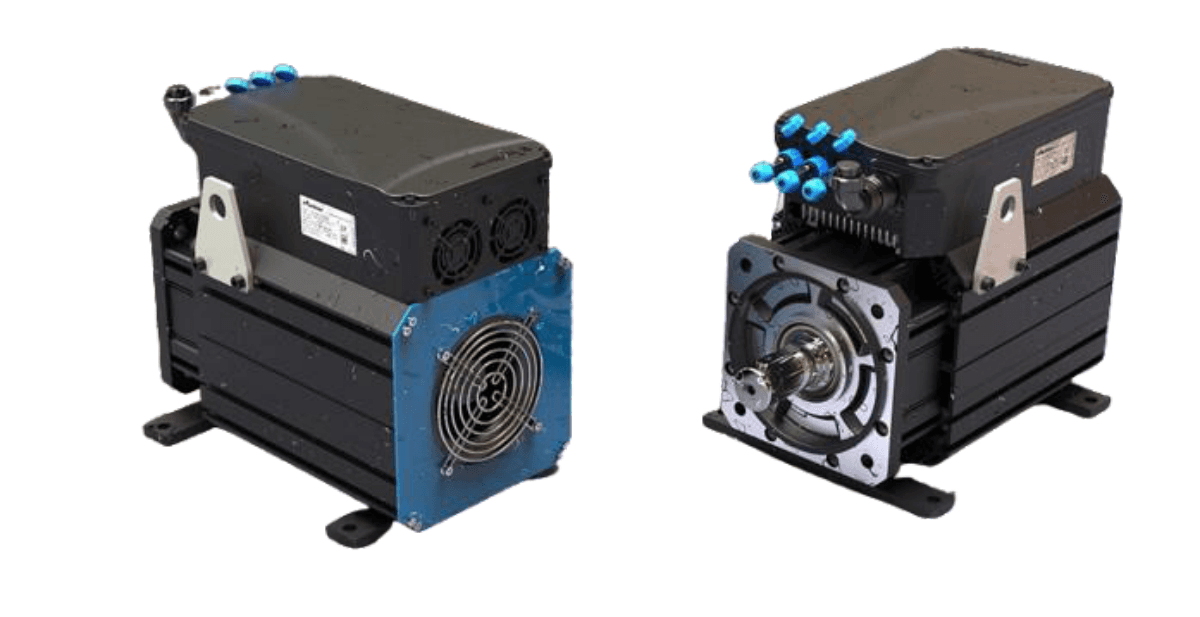

Product photo
Product photo

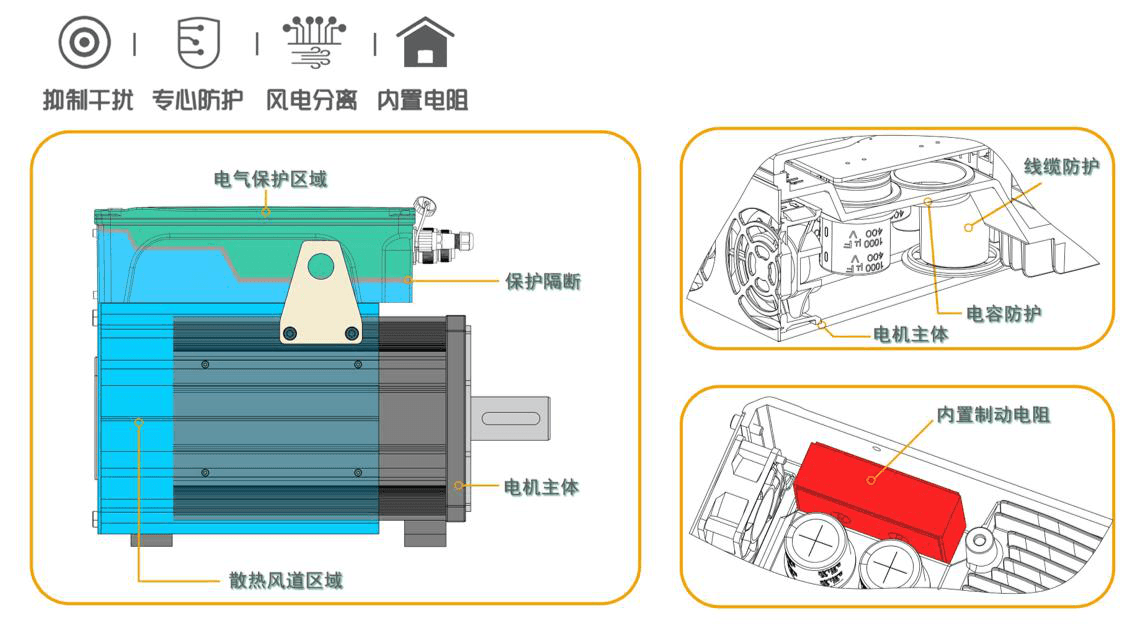

PROTECTION STRUCTUREProtection structure (from catalog)
Protection structure (from catalog)

Product featuresFEATURES

  • Plug-and-play cabling

    Four pre-made cables with aviation connectors. No cover opening, no motor self-learning.

  • Control / power separation

    Independent control power. Motor can be up to 100 m from the cabinet; control box saves about 90% mounting space.

  • Integrated thermal design

    CFD-optimized air duct, die-cast aluminum housing and smart fan control.

  • Industrial fieldbus

    MODBUS, CANopen, EtherCAT and Profinet. Multi-pump confluence supported.

Horizontal or vertical mounting; cable outlet direction customizable by 180°.

Technical documentsTECHNICAL DOCUMENTS

Full specificationsAll models, AC200V / AC400V class

AC200V class

ModelFrameRated power kWRated torque NmRated speed rpmRated current ADrive power kW
EMDB-130B-1HP-2025X-ADB-130B1.005.02,0002.571.0~1.8
EMDB-130B-2HP-2025X-ADB-130B1.507.02,000——
EMDB-130C-3HP-2025X-ADB-130C2.210.02,0005.151.0~1.8
EMDC-150D-5HP-2035X-ADC-150D3.715.02,0007.512.2~3.0
EMDC-180D-5HP-2050X-ADC-180D4.020.02,0007.513.7
EMDC-180S-7HP-2050X-ADC-180S5.528.02,00012.73.7
EMDD-200S-9HP-2075X-ADD-190S7.142.01,70012.75.5~7.5
EMDD-200A-10HP-2075X-ADD-190A7.555.01,50018.85.5~7.5
EMDD-200B-13HP-2075X-ADD-190B9.455.01,70025.65.5~7.5
EMDE-200B-15HP-2100X-ADE-190B11.065.01,70025.611.0
EMDE-200C-19HP-2100X-ADE-190C14.084.01,70037.511.0
EMDE-200D-24HP-2150X-ADE-190D18.0105.01,70051.215.0

AC400V class

ModelFrameRated power kWRated torque NmRated speed rpmRated current ADrive power kW
EMDB-130B-1HP-4015X-ADB-130B1.57.22,0001.491.0~1.5
EMDB-130C-2HP-4015X-ADB-130C2.210.52,0002.981.0~1.5
EMDB-130C-2HP-4025X-ADB-130C3.014.32,0002.982.2~3.7
EMDB-130D-3HP-4025X-ADB-130D3.717.72,0004.352.2~3.7
EMDB-190S-5HP-4025X-ADB-190S5.526.32,0007.332.2~3.7
EMDC-190S-5HP-4035X-ADC-190S3.717.72,0007.335.5
EMDC-190A-7.5HP-4035X-ADC-190A3.717.72,00010.95.5
EMDC-190A-7.5HP-4050X-ADC-190A5.526.32,000——
EMDC-190A-7.5HP-4050X-ADC-190A7.535.82,00010.98.0
EMDC-190B-10HP-4050X-ADC-190B9.043.02,00014.88.0
EMDD-190B-10HP-4075X-ADD-190B9.855.11,70014.811~15
EMDD-190C-15HP-4075X-ADD-190C11.061.81,70021.611~15
EMDD-190D-20HP-4075X-ADD-190D15.084.31,70029.611~15
EMDD-190K-20HP-4075X-ADD-190K18.0101.11,70029.711~15
EMDE-190D-20HP-4100X-ADE-190D18.0101.11,70029.618.5~22.0
EMDE-190E-25HP-4100X-ADE-190E22.0123.61,70036.618.5~22.0
EMDE-230E-30HP-4100X-ADE-230E30.0168.51,70043.518.5~22.0
EMDE-230E-30HP-4150X-ADE-230E37.0207.91,70043.530.0~37.0
EMDE-230F-40HP-4150X-ADE-230F37.0207.91,70059.330.0~37.0

Data transcribed from the BLACK BOX product catalog.

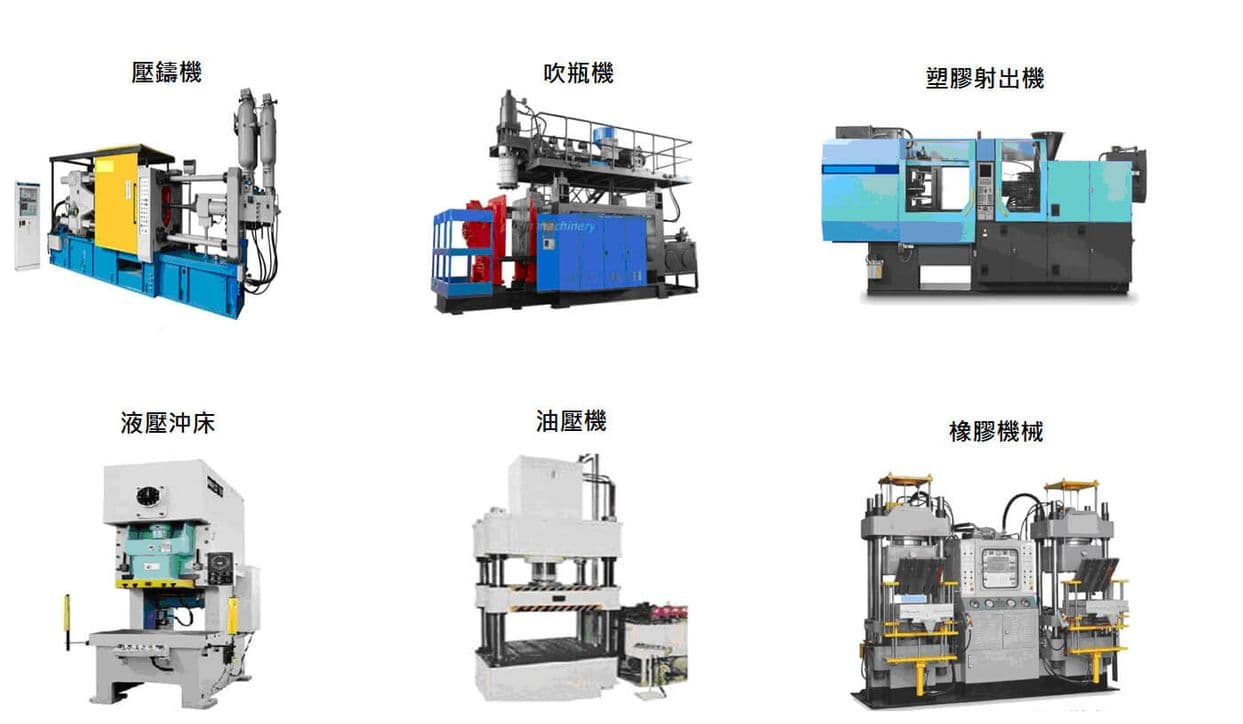

Application Examples

Select an application to see machine types, photos and detailed specifications.

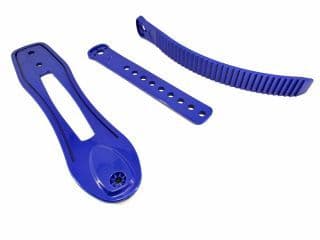

Plastic Injection Machine (Injection Moulding Machine)

Applied to Four-color Plastic Injection Machine, with clamping force 1250 tons and turntable diameter 1800mm, it also has four sets of injection moulding structures, which can produce multi-color moulding products.

Four sets of hydraulic servo energy-saving systems are adopted, which can effectively improve the responsiveness and greatly save energy. With the precise combination of pump and motor, the noise generated by the machine can be lower than 80 decibels. Cooling water consumption is reduced by more than 30%.

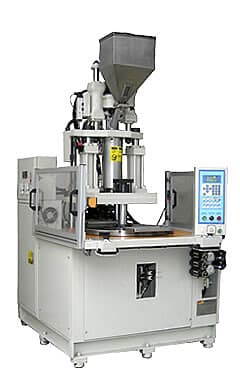

Vertical 3-tie bar 2-stations Rotary Injection Machine
Vertical 3-tie bar 2-stations Rotary Injection Machine

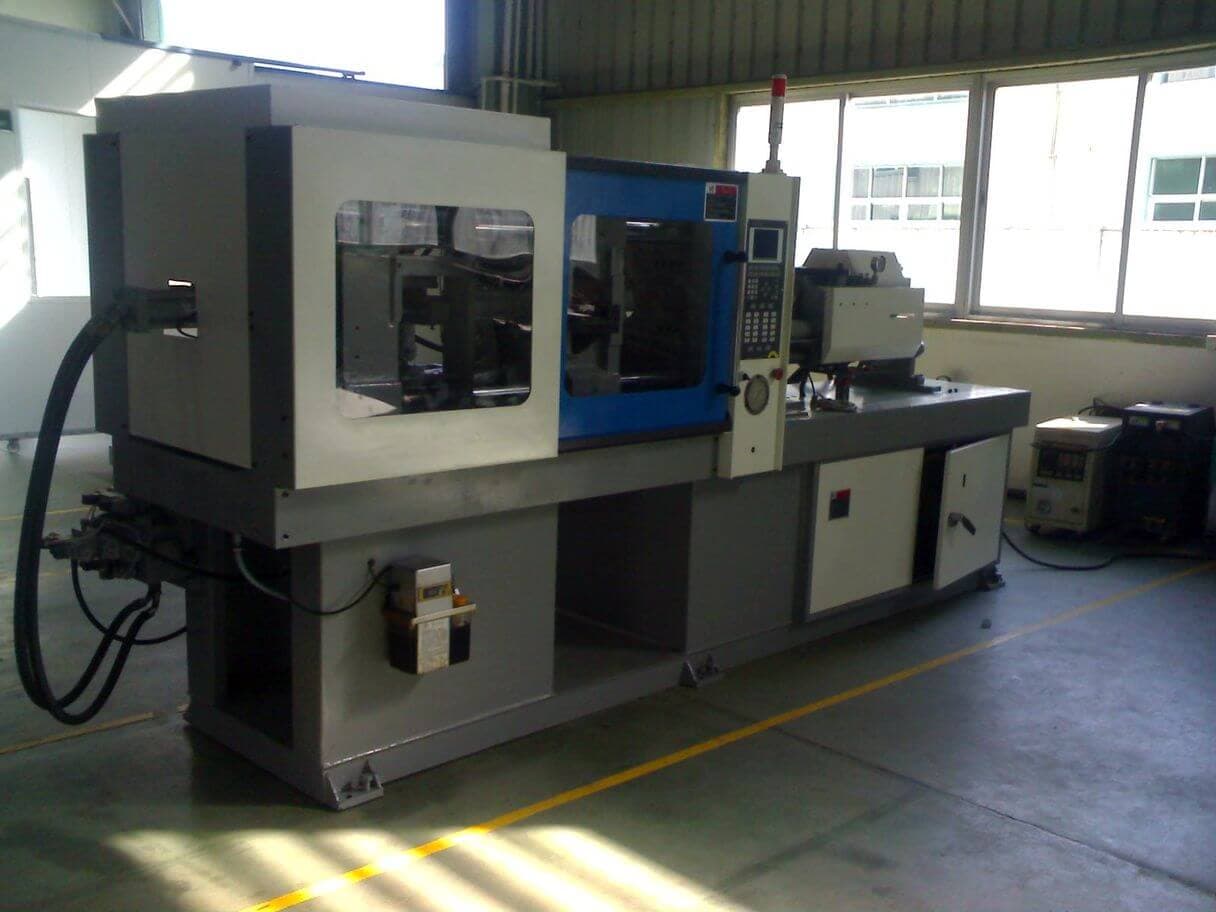

98T-horizontal Direct-pressure Injection Machine
98T-horizontal Direct-pressure Injection Machine

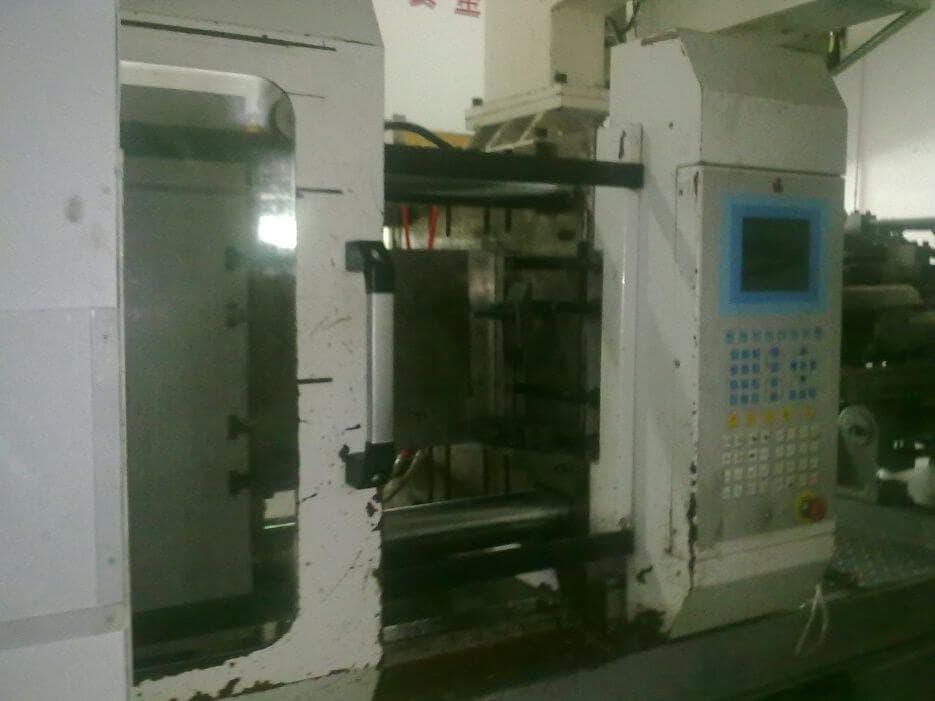

280T-horizontal Direct-pressure Injection Machine
280T-horizontal Direct-pressure Injection Machine

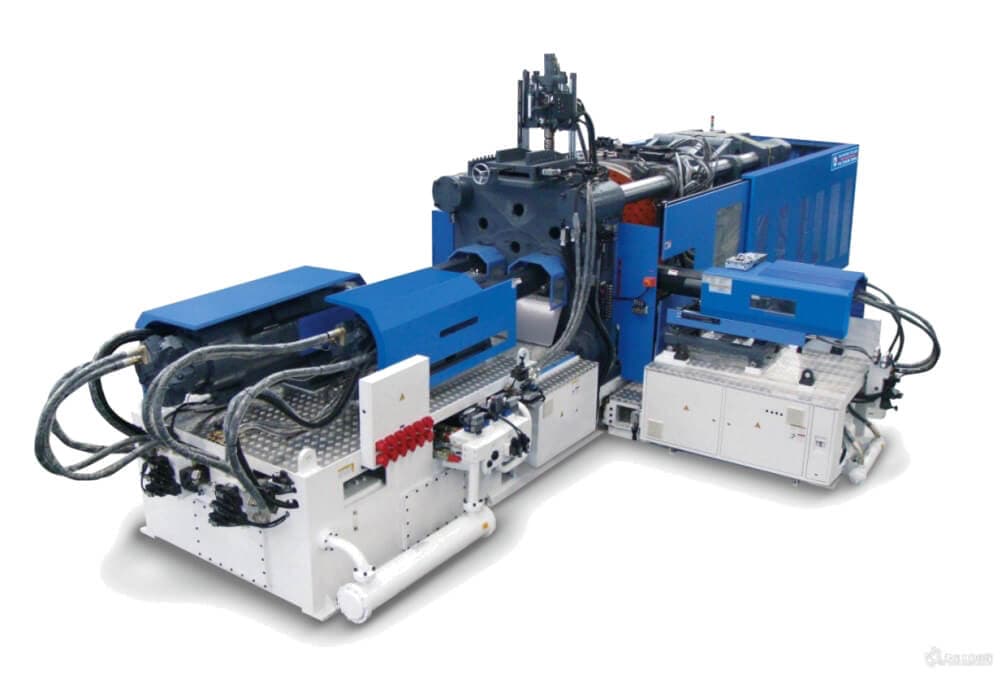

Four-color Large Plastic Injection Machine
Four-color Large Plastic Injection Machine
MachineHydraulic system capabilityMotor specificationsOil pump specificationsHydraulic servo drivePower analysis measured energy-saving rate
Vertical 3-tie bar 2-stations Rotary Injection Machine50LPM/150Bar7.5kW Permanent magnet servo motor20 cc./rev. Internal gear pump11KW68%
98T-horizontal Direct-pressure Injection Machine80LPM/180Bar11kW Permanent magnet servo motor32 cc./rev. Internal gear pump15kW65%
280T-horizontal Direct-pressure Injection Machine200LPM/160Bar30kW Permanent magnet servo motor80 cc./rev. Internal gear pump37KW65%

※ Specification tables are for split-type systems
