PRODUCT LINE 04

Fishery & Animal Husbandry

Designed and made in Taiwan. Solid materials, full warranty and spare-parts support.

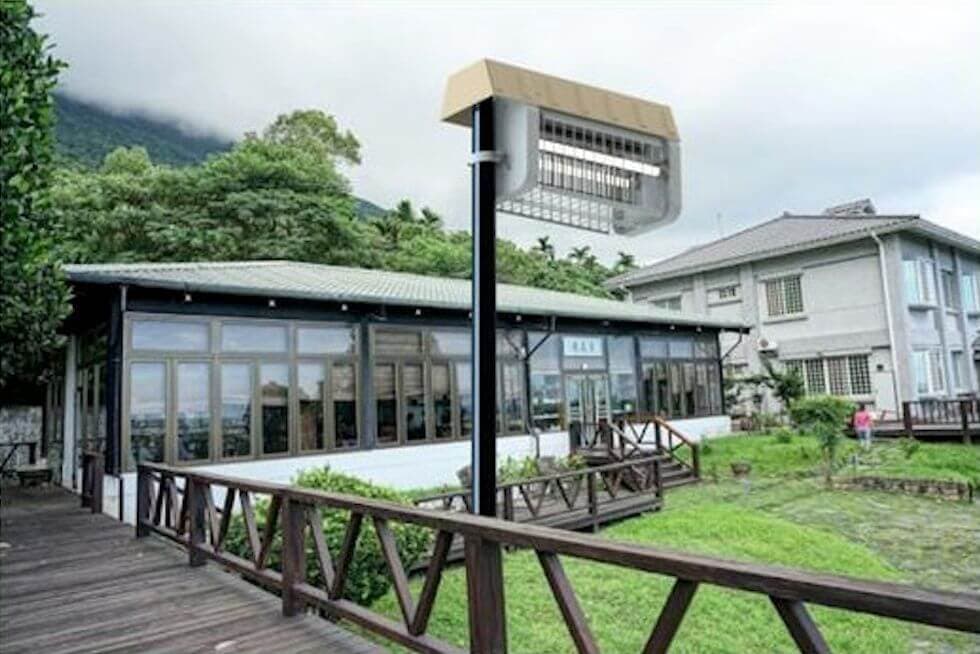

Industrial Insect Killer Lamp

Controls pest density on ranches, poultry farms, pig farms and aquaculture sites. A high-power direct-strike grid stops mosquitoes, flies and moths for good.

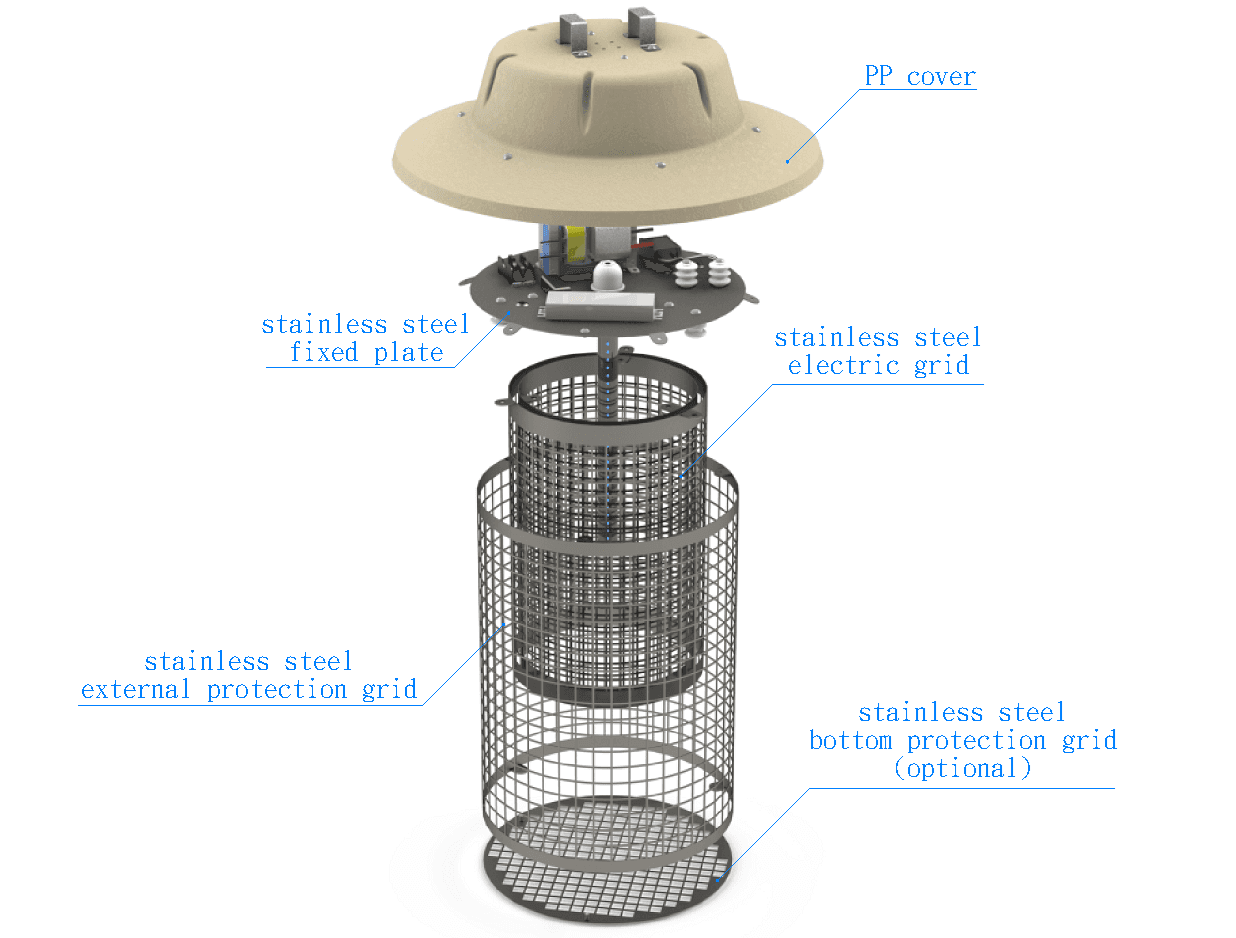

Industrial insect killer lamp structure diagram

Build

Taiwan industrial-grade structure with a sturdy, long-life body. Stainless steel punched grid and guard leave little residue and clean easily.

Weather

Potted high-voltage transformer runs cool. Wind and rain resistant outdoor design with high humidity and corrosion resistance.

Pest control

Powerful electric shock with selectable LED attraction bands, 365~395nm for mosquitoes and flies and 395~405nm for moths; a high-power grid traps pests large and small.

Safety

Ample spare parts and accessories with full warranty support. Optional light and rain control switching; every model has a protective guard.

Physical pest control, no chemical insecticides

Light attraction and a powerful electric shock reduce pest density, protect human and animal health, cut crop damage and avoid secondary pollution.

  1. 01

    Attract

    LED 365~395nm attracts mosquitoes and flies, 395~405nm attracts moths. Choose tubes by target pest; the extended model also takes optional scent lures.

  2. 02

    Shock

    The stainless steel inner grid eliminates insects instantly on contact. An outer guard protects users; outdoor models stop discharging in rain.

  3. 03

    Clean

    Little residue sticks to the punched grid. The economy model adds a detachable insect box for monitoring results and disposal.

Selectable wavelength
365~405nm
Grid voltage
5~6.5kV
LED tube lifespan
10k~20khr
Coverage per unit
50~300m²

Models

Choose by installation site and coverage area. For salt-affected areas pick the B model in full stainless steel 304. Download each DM for complete specifications.

CU-02AIndoor

Indoor standard

For indoor use in barns and farms. Stainless steel 304 punched grid and guard; fluorescent or LED tubes.

Material
stainless steel 304 + PP
Size
53cm*60cm*34.5cm

Attraction light tubes

  • Fluorescent Tube365nmG13/110V/330mm/10W
  • LED365nm ~ 395nmE27/12V/380mm/9W
  • LED365nm ~ 395nmE27/110V/275mm/16W
CU-03AOutdoor

Outdoor standard

Powder-coated steel body with potted HV transformer. Wind and rain resistant for ranches and fish farms.

Material
Steel sheet with powder coating + PP
Size
76cm*41cm*30cm

Attraction light tubes

  • Fluorescent Tube365nmG13/110V/580mm/20W
  • LED365nm ~ 395nmG13/12V/590mm/6W
  • LED365nm ~ 395nmE27/12V/220mm/6W
CU-03BOutdoor

Outdoor, salt-damage areas

Full stainless steel 304 sheet metal. Humidity and corrosion resistant for coastal and salt-affected sites.

Material
Stainless steel 304 sheet metal + PP (special for salt affected areas)
Size
76cm*41cm*30cm

Attraction light tubes

  • Fluorescent Tube365nmG13/110V/580mm/20W
  • LED365nm ~ 395nmG13/12V/590mm/6W
  • LED365nm ~ 395nmE27/12V/220mm/6W
CU-04A / BOutdoorNEW

Extended rectangular, professional

1,250mm extended body covering 200~300 m². Rainproof and windproof; optional liquid scent bottle or solid scent plate. B model in stainless steel 304 for salt-damage areas.

Invention patent

Model no.
CU04A-E27-LED6-1V-36W
Material
Steel sheet + powder coating (B: stainless steel 304)
Size
125cm*39cm*23cm
Coverage area
200 ~ 300 m²
Power supply
AC110V / AC220V
Installation
Wall mount / hanging
Grid voltage
6,500V / 25mA
Net weight
27 kg

Attraction light tubes

  • LED365nm ~ 395nmE27/12V/380mm*4 + 210mm*2
  • LED395nm ~ 405nmE27/12V/380mm*4 + 210mm*2
Download DM
CU-05A / BOutdoorNEW

Streetlight co-mounted

Shares the pole with streetlight and CCTV: lighting, pest control and monitoring in one. For communities and campuses; CCTV optional, B model in stainless steel 304.

Model no.
CU05A-E27-L4-DV-01A
Material
SPCC + powder coating (B: stainless steel 304)
Size
632mm*387mm*280mm
Coverage area
200 ~ 250 m²
Power supply
AC110V / AC220V
Installation
Pole mount
Grid voltage
6,500V
Net weight
15 kg

Attraction light tubes

  • LED365nm ~ 395nmE27/12V/5W*4
  • LED395nm ~ 405nmE27/12V/5W*4
Download DM
CU-06AIndoor / OutdoorNEW

Economy version for small farms

Ø356mm lightweight round body with top hook, no installation needed. Built-in rain control stops discharge in rain; detachable insect box for cleaning and monitoring.

Model no.
CU06A-E27-L1-DV-01A
Material
Stainless steel
Size
Ø356mm*553mm
Coverage area
50 ~ 80 m²
Power supply
AC110V / AC220V
Installation
Outdoor / indoor hanging
Grid voltage
5kV / 10mA
Net weight
3.5 kg

Attraction light tubes

  • LED365nm ~ 395nmE27/12V/5W*1
  • LED395nm ~ 405nmE27/12V/5W*1
Download DM
CU-04A / BOutdoor
Material
Steel sheet + powder coating (B: stainless steel 304)
Size
125cm*39cm*23cm

Attraction light tubes

  • LED365nm ~ 395nmE27/12V/380mm*4 + 210mm*2
  • LED395nm ~ 405nmE27/12V/380mm*4 + 210mm*2
CU-05A / BOutdoor
Material
SPCC + powder coating (B: stainless steel 304)
Size
632mm*387mm*280mm

Attraction light tubes

  • LED365nm ~ 395nmE27/12V/5W*4
  • LED395nm ~ 405nmE27/12V/5W*4
CU-06AIndoor
Material
Stainless steel
Size
Ø356mm*553mm

Attraction light tubes

  • LED365nm ~ 395nmE27/12V/5W*1
  • LED395nm ~ 405nmE27/12V/5W*1

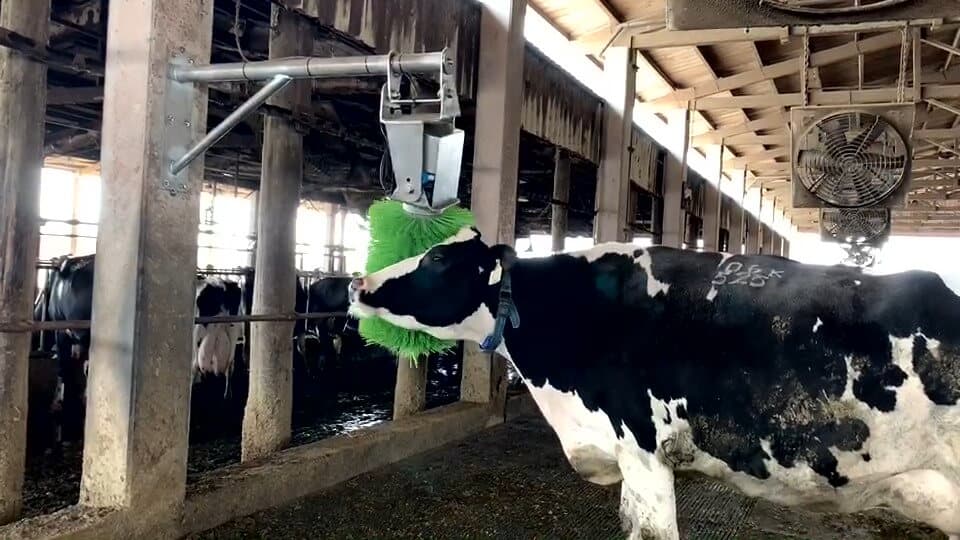

Smart Stainless Steel Cattle Brush

Starts automatically when cattle touch it, promoting blood circulation and sweat gland excretion while reducing parasites. Full stainless steel, made in Taiwan with spare parts in stock.

TS-6050Smart Control / Stainless Steel

Functions

  • Promote blood circulation and sweat gland excretion for the cattle which reduces the probability of skin infection.
  • Activate the epidermal nerve for the cattle which helps to enhance their digestibility and absorptive capacity.
  • Reduce infestation of parasites through their skin thus improves disease resistance for the cattle.

Features

  • Durable with stainless steel structure which is anti-rust and corrosion resistant.
  • Fully automatic intelligent touch control, with automatic shutdown function for safety protection.
  • Provide secure maintenance support services with sufficient spare parts and the whole machine is made in Taiwan.

Specifications

  • Two product sizes: D450mm*600mm and D500mm*600mm for you to choose; material of the bristles: PP.
  • Single-phase motor AC220V/200W, brush head rotation speed: 30 revolutions per minute.
  • Intelligent touch-control adjustable angle 10~30 degrees.
  • Safety protection designs such as automatic reverse and shutdown functions, which prevents the cattle’s tail from being sucked into the machine.
  • Easy to adjust with digital display for multifunctional settings.

Not sure which model fits your site? Tell us the area and environment and we will help you choose and quote.

Model selection inquiry
